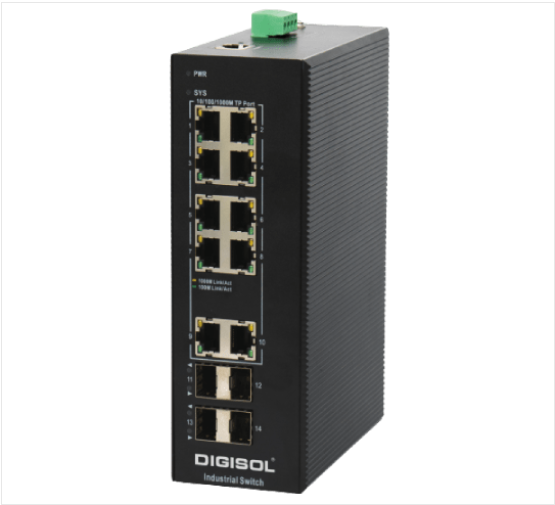

DIGISOL Managed Industrial Switch with 4 Gigabit SFP Ports, 2 Gigabit TX Ports and 8 Gigabit PoE Ports, PoE: 240W – DG-IS4514HPE

Weight	1.8 kg
Dimensions	24.2 × 20.7 × 8.6 cm
Interface	8 GE PoE ports, 2GE TX Ports, 4 100/1000M SFP ports
Console	1 RJ45 port
Switching capacity	28 Gbps
Forwarding Rate	21 Mpps
Power consumption (No Load)	< 15W
Power consumption (full-load with PoE)	260W
Total Output (1000BTU/H=293W)	887.37
MTBF	<852224.30 hours
PoE power budget	240W
Forwarding mode	Store-forward
Flash Memory	16 MB
DRAM	128 MB
MAC	8K
Buffer size	4 MB
Jumbo frame	9K
Power input	Dual DC 48~55V
Total Svi	10
Operating temperature	-40~85°C

Weight

1.8 kg

Dimensions

24.2 × 20.7 × 8.6 cm

Interface

8 GE PoE ports, 2GE TX Ports, 4 100/1000M SFP ports

Console

1 RJ45 port

Switching capacity

28 Gbps

Forwarding Rate

21 Mpps

Power consumption (No Load)

< 15W

Power consumption (full-load with PoE)

260W

Total Output (1000BTU/H=293W)

887.37

MTBF

<852224.30 hours

PoE power budget

240W

Forwarding mode

Store-forward

Flash Memory

16 MB

DRAM

128 MB

MAC

Buffer size

4 MB

Jumbo frame

Power input

Dual DC 48~55V

Total Svi

Operating temperature

-40~85°C

Description

High-Performance Industrial Ethernet Switch for Robust Networking

The DIGISOL DG-IS4514HPE is designed to offer exceptional performance and reliability in the most demanding industrial environments. Powered by DIGISOL’s BDROS platform, this high-performance hardware ensures seamless communication with support for ACL, QinQ, Quality of Service (QoS), and static routing. Whether you’re managing a complex industrial network or looking for robust solutions in energy, transportation, or environmental protection, the DG-IS4514HPE is engineered to meet your needs. With its dual power input, it provides unparalleled flexibility and reliability in harsh conditions.

Durable Design for Industrial Applications

Built with industrial-grade durability, the DG-IS4514HPE is designed to withstand extreme conditions, ensuring long-lasting performance. Featuring electromagnetic compatibility (EMC), anti-vibration, and anti-shock capabilities, this Ethernet switch is prepared for environments where other networking equipment might fail. It also boasts an IP40-rated enclosure, offering solid protection from dust and other environmental factors. Whether deployed in factories, transport systems, or outdoor facilities, this Ethernet switch is ready to perform in diverse applications.

Seamless Self-Healing Network Technology

The DIGISOL DG-IS4514HPE uses cutting-edge industrial Ethernet ring network technology, ensuring your network stays operational even in the face of disruptions. Thanks to a hardware-based algorithm, the self-healing mechanism ensures that the recovery time for each node is less than 5 milliseconds, while the entire ring network self-heals in less than 50 milliseconds (typical value). This ensures minimal downtime, providing businesses with a highly reliable and efficient networking solution for mission-critical operations.
