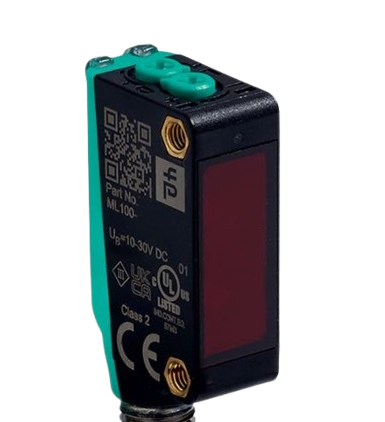

Retro-Reflective Photoelectric Sensor (ML100-55/95/102)

Description

The optical sensors of this series are suitable for both standard and demanding applications.
The series features a miniature housing design, two M3 metal-threaded mounting holes, and a highly visible LED status indicator.
Each device is equipped with a sensitivity adjuster and a light-on/dark-on switch for increased flexibility.
A wide variety of versions are available in both infrared light and red light with PowerBeam for easy alignment.
Special versions with BlueBeam are suitable for challenging applications like those in the solar and battery industries.

Technical Data

General specifications
Effective detection range 0 … 5 m
Reflector distance: 0.01 … 5 m
Threshold detection range: 7 m
Reference target H50 reflector
Light source LED
Light type modulated visible red light
Polarization filter yes
Diameter of the light spot is approx. 500 mm at a distance of 7 m
Opening angle approx. 4 °
Optical face frontal
Ambient light limit EN 60947-5-2:2007+A1:2012

Functional safety-related parameters
MTTFd 860 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %

Indicators/operating means
Operation indicator LED green: power on
Function indicator LED yellow: lights up when receiving the light beam ; flashes when falling short of the

operating reserve; OFF when light beam is interrupted

Control elements sensitivity adjustment
Control elements Light-on/dark-on changeover switch

Electrical specifications
Operating voltage: UB 10 … 30 V DC
Ripple max. 10 %
No-load supply current I0 < 20 mA

Output
Switching type The switching type of the sensor is adjustable. The default setting is: light-on
Signal output 1 NPN output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA , resistive load
Voltage drop Ud ≤ 1.5 V DC
Switching frequency: 1000 Hz
Response time: 0.5 ms

Conformity
Product standard EN 60947-5-2

Approvals and certificates
UL approval cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage
output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure

CCC approval/marking is not required for products rated ≤36 V

Ambient conditions
Ambient temperature -30 … 60 °C (-22 … 140 °F)
Storage temperature: -40 … 70 °C (-40 … 158 °F)

Mechanical specifications
Housing width 11 mm
Housing height: 31 mm
Housing depth: 20 mm
Degree of protection: IP67
Connection Connector M8 x 1 , 4-pin

Material
Housing PC (Polycarbonate)
Optical face PMMA
Mass approx. 10 g
Tightening torque, fastening screws 0.6 Nm
