Brand – Lubi

Model – LHP 3535U

Power – 5Hp

Phase – 3Ø

Outlet  size – 3″

Impeller Type – U

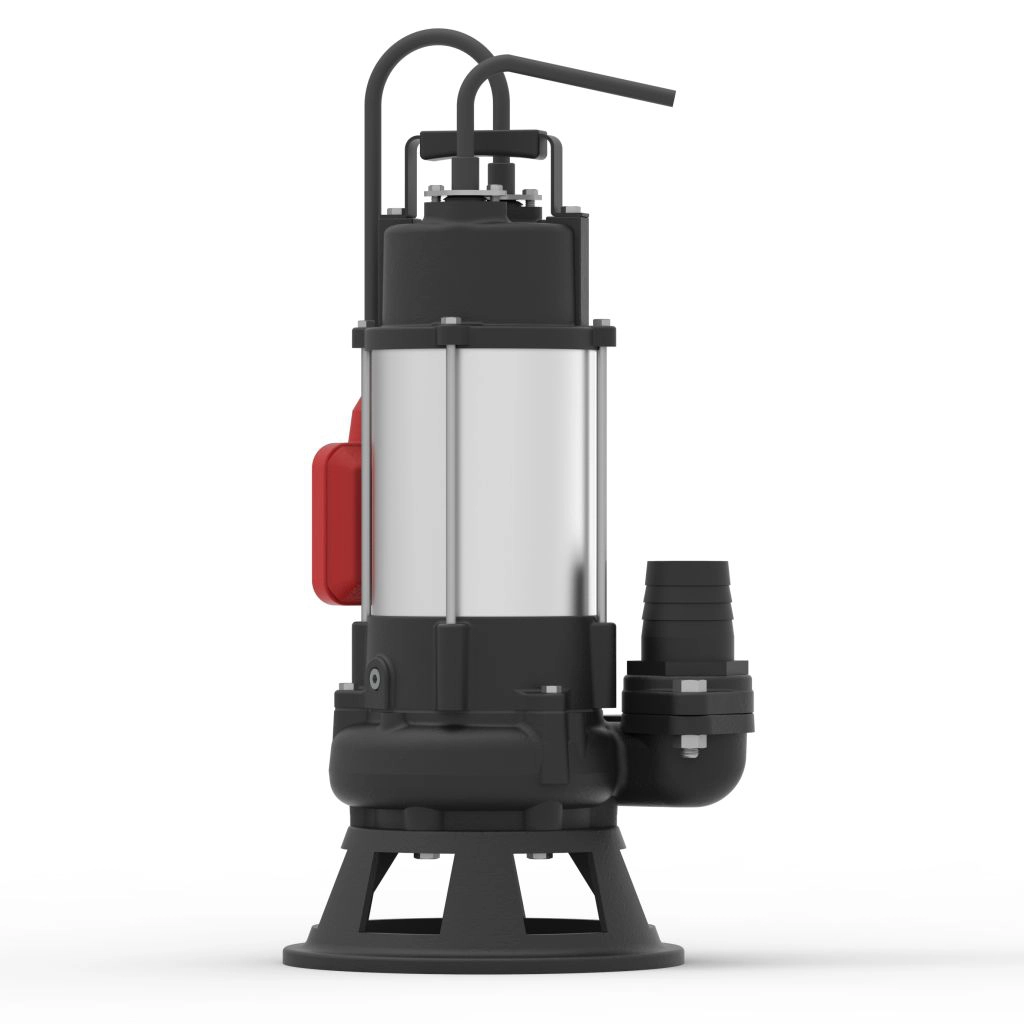

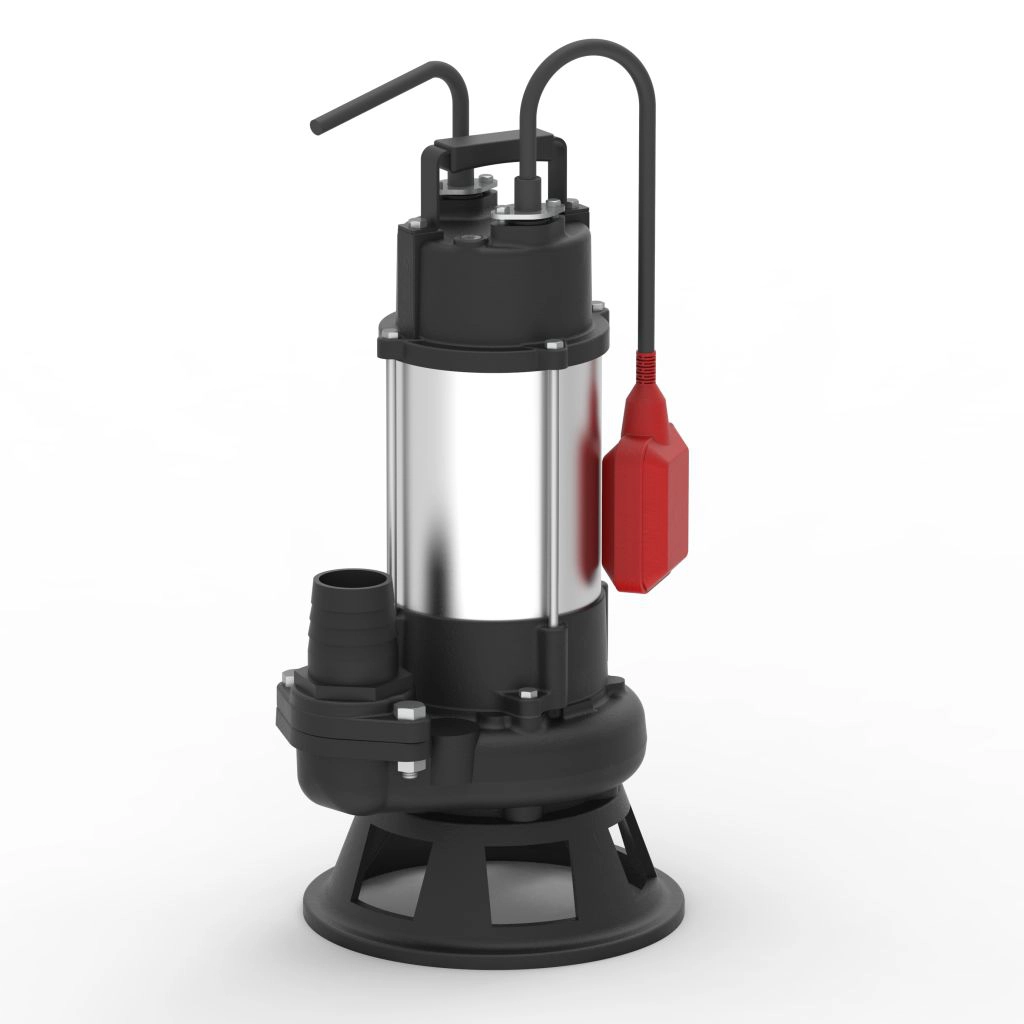

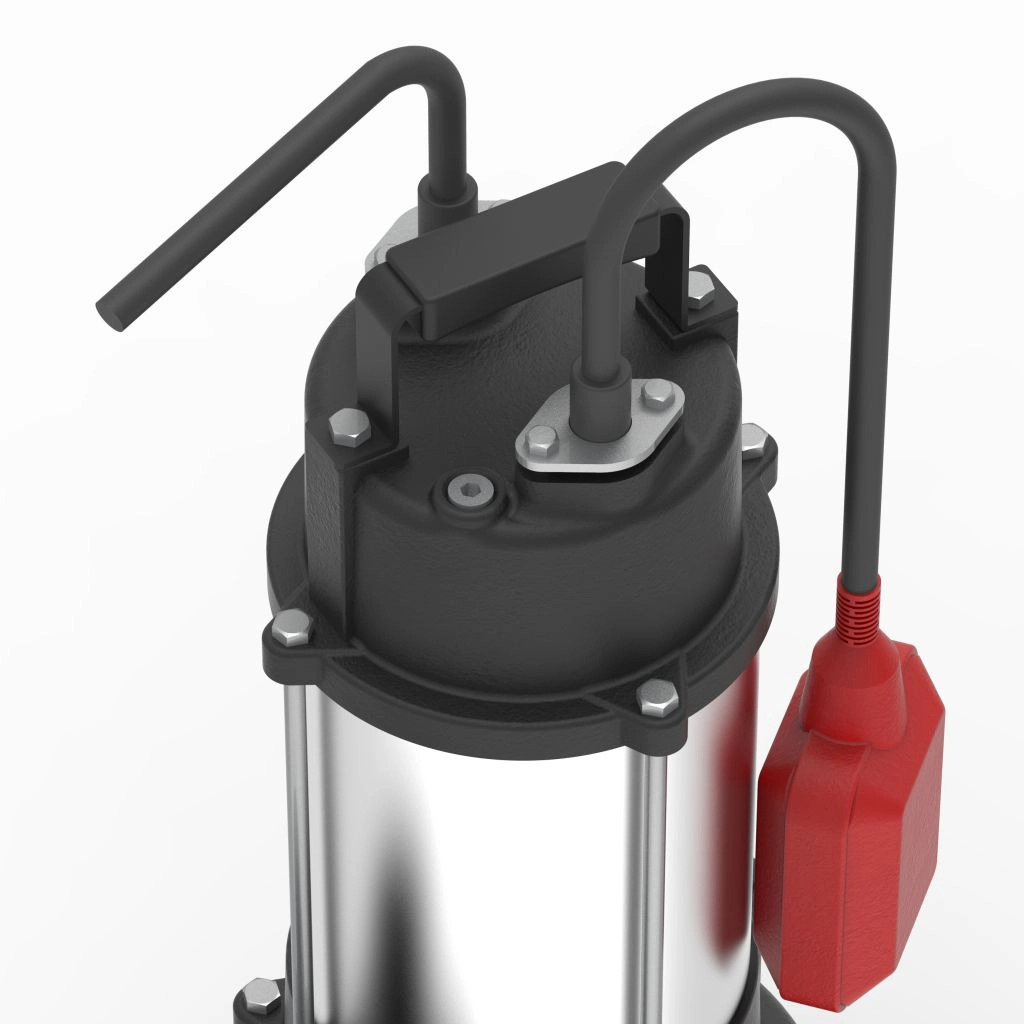

Lubi LHP‑3535U Sewage Submersible Pump – Product Overview

The Lubi LHP-3535U is a heavy-duty sewage submersible pump designed for pumping sewage, wastewater, sludge, and liquids containing solids or fibers. It is manufactured by Lubi Industries LLP and built for continuous submerged operation in municipal, industrial, and commercial drainage systems.

Key Specifications

• Model: LHP-3535U

• Pump Type: Sewage Submersible Pump

• Power: 5 HP (3.7 kW)

• Phase: Three Phase

• Voltage: 415 V, 50 Hz

• Discharge Size: 80 mm (3 inch)

• Impeller Type: U-type non-clog impeller

• Motor Protection: IP68

• Insulation Class: Class F

• Maximum Liquid Temperature: Up to 50°C

Performance (Approx.)

• Head Range: about 12.3 m to 6.3 m

• Flow Rate: about 200 to 1000 LPM depending on head conditions.

Construction Features

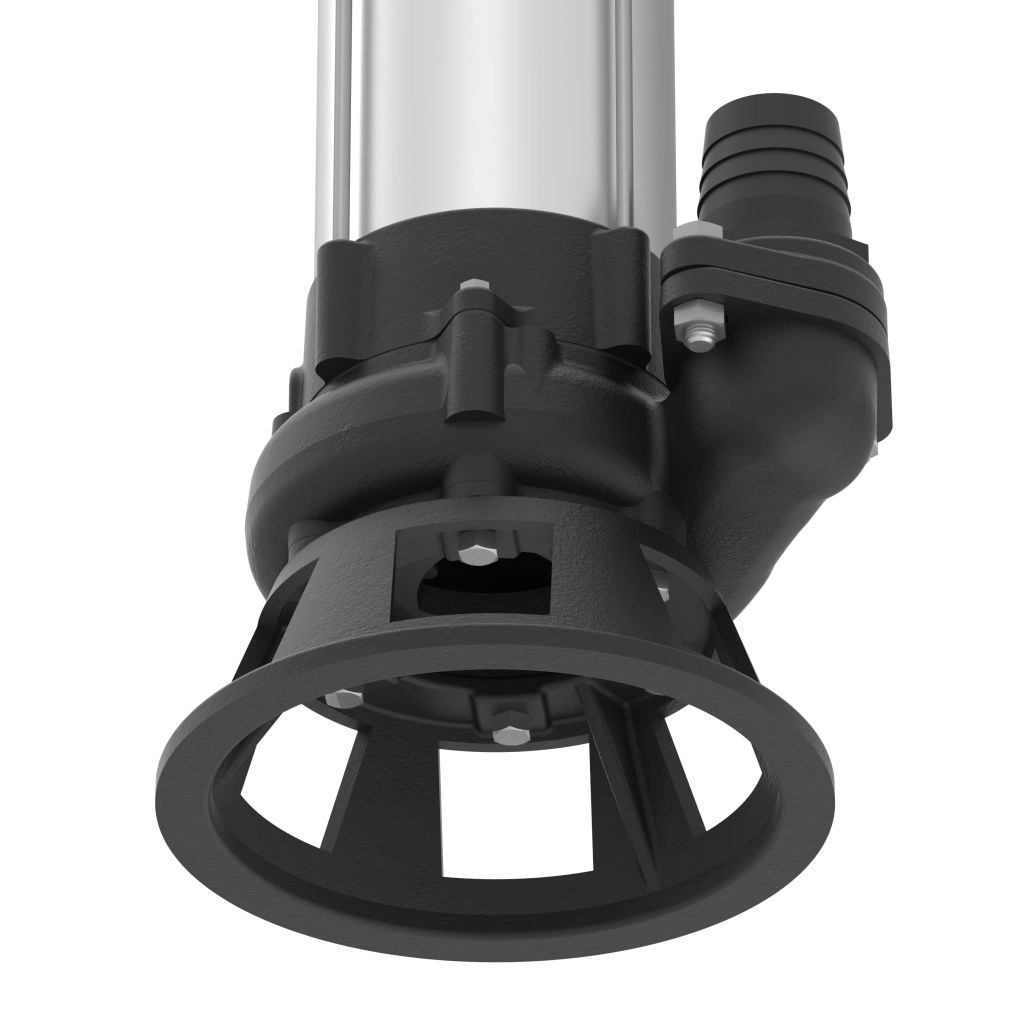

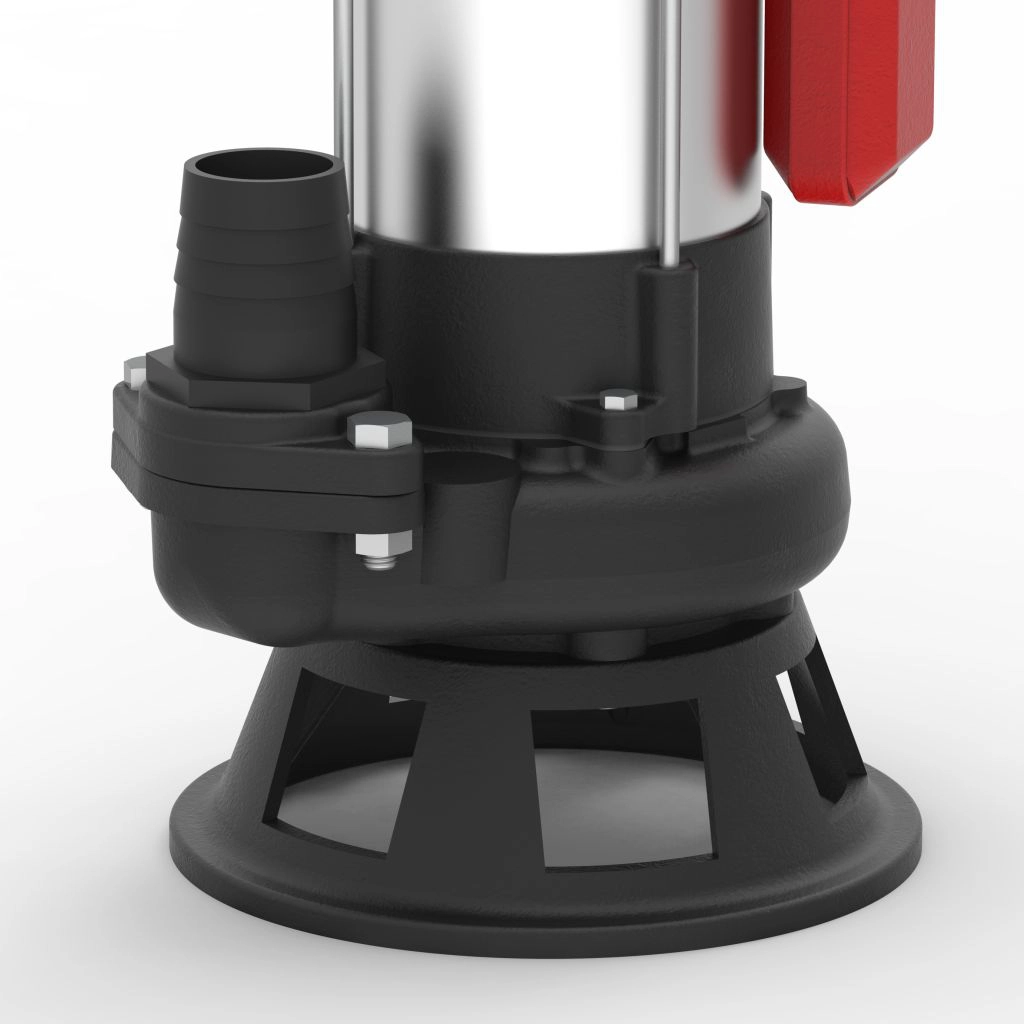

• Heavy-duty cast iron pump casing for durability
• Non-clog impeller to handle solids and fibrous materials
• Double mechanical seal for leak protection
• Stainless steel shaft for corrosion resistance
• IP68 submersible motor suitable for continuous duty
• CED coated cast-iron parts for better corrosion resistance.

Applications

• Sewage pumping stations

• Municipal drainage systems

• Effluent Treatment Plants (ETP/STP)

• Industrial wastewater transfer

• Basement and flood water drainage

• Septic tanks and sewage pits
