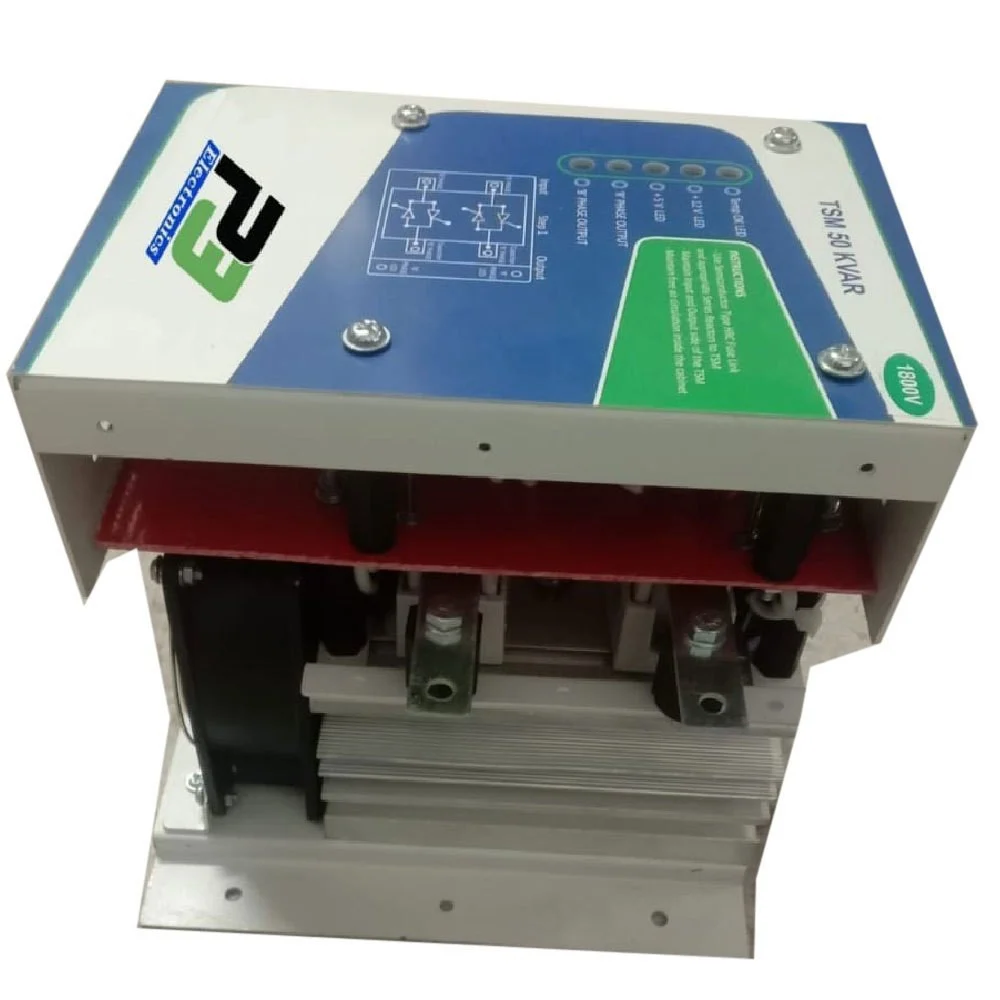

🔹 Thyristor Switching Module 50 KVAR (Make: P3 Electronics)

Here is a professional product description you can use for catalogue, quotation, or website:

🔹 Product Overview

A 50 KVAR Thyristor Switching Module (TSM) is a solid-state switching device used in Automatic Power Factor Correction (APFC) panels for fast and reliable switching of capacitor banks.

Unlike conventional contactor-based systems, it uses thyristors (SCRs) to achieve instant, transient-free switching.

🔹 Key Features

• Rating: 50 KVAR
• Voltage: Typically 415V / 440V AC, 3 Phase
• Frequency: 50 Hz
• Switching Time: Very fast (~5 milliseconds)
• Technology: Solid-state (thyristor based)
• Switching Type: Zero-cross switching (no transients)
• Operation: Noise-free, arc-free
• Maintenance: Maintenance-free (no mechanical wear)

🔹 Functional Description

• Designed for real-time reactive power compensation
• Switches capacitor banks instantly based on load variation
• Works with APFC relay / PLC control signals
• Provides smooth switching without voltage spikes or inrush current

🔹 Technical Highlights

• Zero voltage ON / zero current OFF switching → eliminates transients
• Unlimited switching operations → long life vs contactors
• Built-in protections:
  • Over-temperature protection
  • dv/dt & surge protection
• Cooling: Natural / Forced cooling (fan-based in some models)

🔹 Applications

• APFC Panels (Automatic Power Factor Correction)
• Industries with rapid load fluctuation, such as:
  • Welding machines
  • CNC machines
  • Rolling mills
  • Elevators & cranes
  • VFD-driven systems

🔹 Advantages

• ⚡ Ultra-fast switching (milliseconds)
• 🔇 Silent operation (no contact noise)
• 🔧 No maintenance (no contact wear)
• ⚙️ Improves power factor instantly
• 🔋 Enhances capacitor life (no inrush stress)

🔹 Equivalent

L&T LTTSM50B2 50kVAr Thyristor Switching Module

• TD50KVAR 415V Thyristor Switching Module

🔹 Summary

The P3 Electronics 50 KVAR Thyristor Switching Module is an ideal solution for high-speed APFC systems, ensuring stable power factor, reduced losses, and longer equipment life in dynamic industrial environments.
